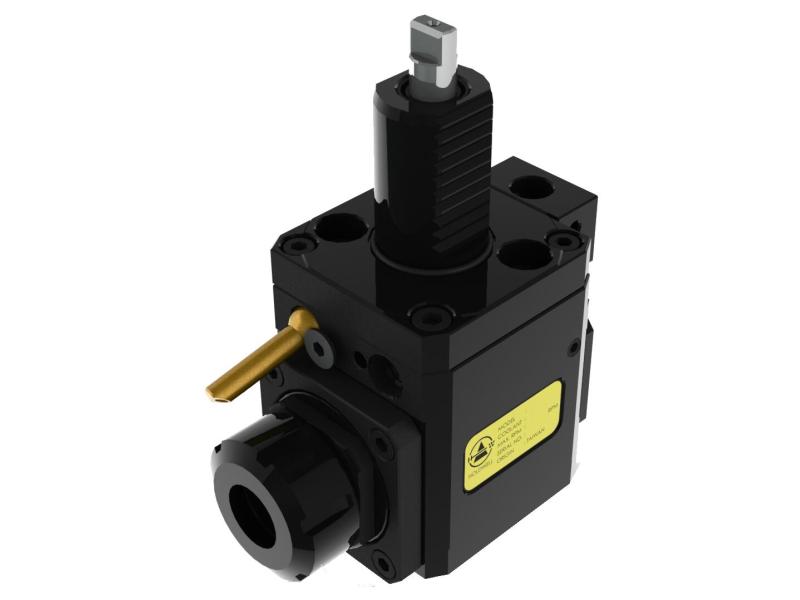

THB-B06.92-50A VDI50-1809-ER40 徑向動力刀座 92mm

產品介紹

prod2014041600033
prod20140416000332020-06-18_10_28_53
◎ VDI50-1809-ER40 Radial Driven Tool Holder ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 1809. ◎ ER Collet is according to DIN 6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

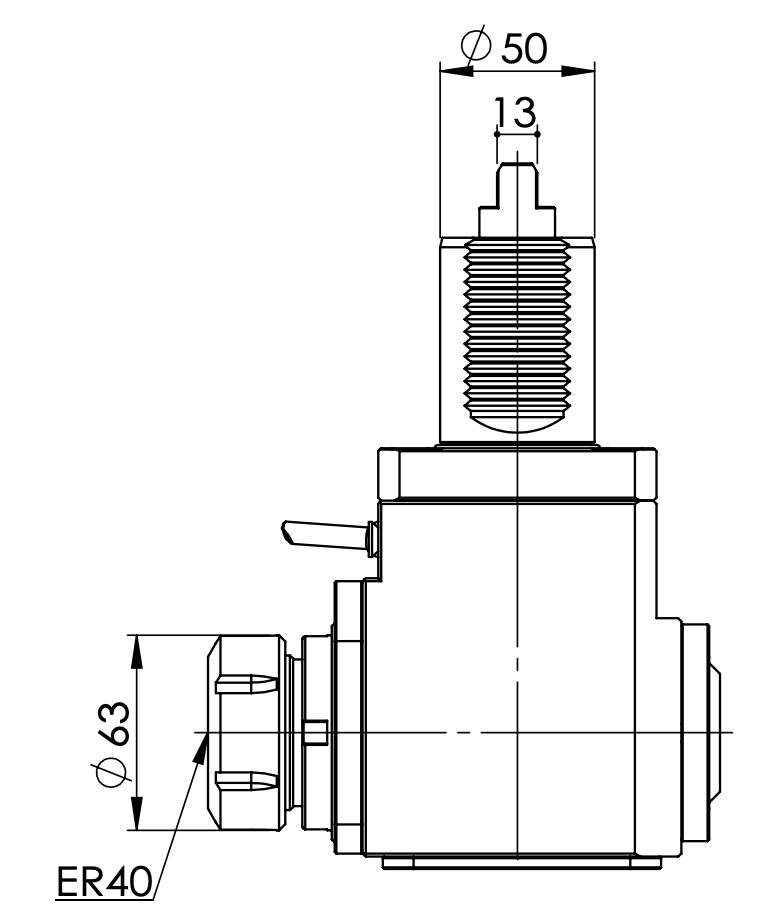

THB-B06.92-50A VDI50-1809-ER40 徑向動力刀座 92mm



下載 PDF DWG
  • 描述

◎ VDI50-1809-ER40 Radial Driven Tool Holder

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 1809.

◎ ER Collet is according to DIN 6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
